雙AR Coating  |光學鍍膜|AR Coating

雙AR Coating


Double AR coating 抗反射鍍膜 Double Anti-reflection membrane made by dielectrics will enhance the transmission

代碼 AR-COATING-DOUBLE

人氣 83





Double AR Coating   雙層抗反射鍍膜


Double Anti-reflection membrane made by dielectrics is able to enhance the transmission more than only AR coating

    參考規格


  Double AR Coating 420 - 680 nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
420-680 nm Tavg > 97%



    Spectrum


  Double AR Coating 400 - 700 nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
400-700 nm Tavg > 98%



    Spectrum

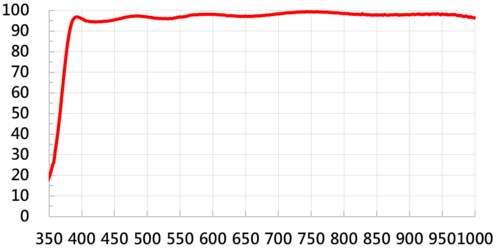

  Double  AR Coating 400 - 1000 nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
400-1000 nm Tavg > 97%



Spectrum


 Double  AR Coating 400 - 2000 nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
400-2000 nm Tavg > 94%
Spectrum



 Application

Cover Glass of Camera, Glass of LCD projection system, Optical Instruments,
Optical Cover Glass

 Available Sizes & Cutting Tolerance

  • Square:7-300nm
  • Round:3-450nm
  • Cutting Tolerance = ±0.05~±0.1mm
 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times


 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C


 Available Glass Material
(Thickness & Maximum Operation Temperature)

  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
