Bandpass Filter 帶通濾光片


帶通濾光片,Bandpass Filter產品應用廣泛,可濾除特定波段的光線,避免干擾感應的零件、設備,Bandpass730、Bandpass780、Bandpass850、Double Bandpass...等需求的波段

代碼 BANDPASS-SERIES

人氣 85





Bandpass Filter   帶通濾光片


Band Pass Filter (帶通濾光片) - 依需求慮除波段光線,使感應裝置達到極佳效果

    材料 :  玻璃  ( D263T , Boro )

    規格 : T50% (nm) Center (T50%)、 PEAK 、FWHM (T50%)、Tavg % (nm)。

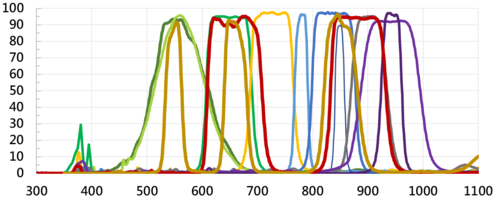

Products  List

  Bandpass 525 nm   Bandpass 850 nm
  Bandpass 650 nm   Bandpass 905 nm
  Bandpass 730 nm   Bandpass 940 nm
  Bandpass 750 nm   Double Bandpass
  Bandpass 780 nm   3 Bandpass

    參考規格


    Bandpass 525 nm

Wave Length (nm) Transmission (%)
350-440 nm Tavg < 3%
500-550 nm   Tavg > 90%
475,575 +/-10 nm T50%
600-1100 nm Tavg < 8%



  Spectrum




     Bandpass 650 nm

Wave Length (nm) Transmission (%)
640-660 nm Tavg > 90%
600,680 +/-10 nm T50%





   Spectrum


      Bandpass 730 nm

Wave Length (nm) Transmission (%)
400-680 nm Tavg < 1%
710-750 nm Tavg > 94%
800-1100 nm Tavg < 1%











     Spectrum


     Bandpass 750 nm

Wave Length (nm) Transmission (%)
400-660 nm Tavg < 2%
715-785 nm   Tavg > 90%
840-1050 nm Tavg < 2%





  Spectrum





    Bandpass 780 nm

Wave Length (nm) Transmission (%)
400-740 nm Tavg < 1%
PEAK 780 +/-10 nm   T min > 90%
820-1100 nm Tavg < 1.5%




   Spectrum

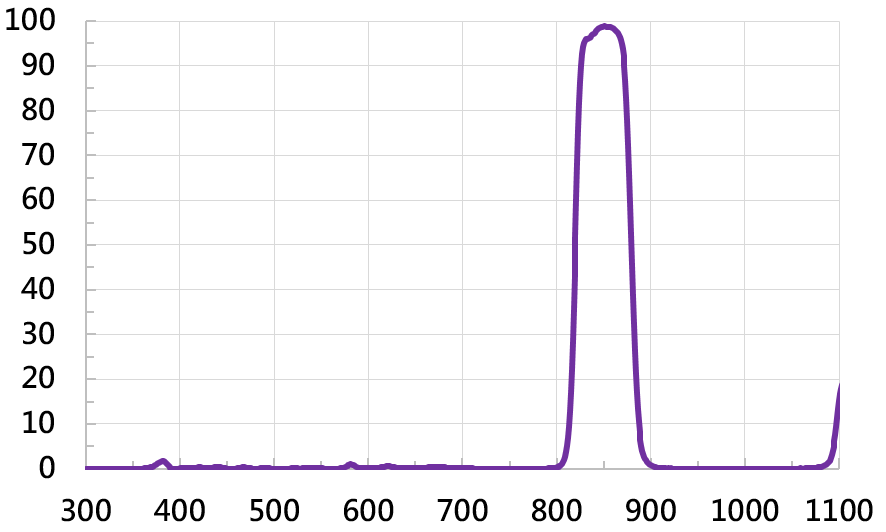

     Bandpass 850 nm

Wave Length (nm) Transmission (%)
400-760 nm Tavg < 1%
840-860 nm   Tavg > 94%
900-1100 nm Tavg < 1%




  Spectrum

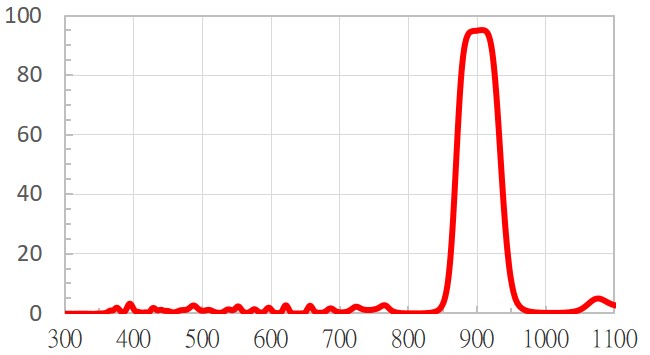

Bandpass 905 nm

Wave Length (nm) Transmission (%)
300-845 nm Tavg < 1%
885-925 nm Tavg > 90%
965-1000 nm Tavg < 1%
FWHM 64nm+/-5nm
T50% 868+/-5nm
T50% 932+/-5nm


Spectrum

   Bandpass 940 nm

Wave Length (nm) Transmission (%)
400-830 nm Tavg < 1%
990-1010 nm T 50%
930-950 nm Tavg > 90%
880-900 nm T 50%
1050-1100 nm Tavg < 1.5%

 Spectrum


   Double Bandpass

Wave Length (nm) Transmission (%)
630-690 nm Tavg > 88%
850-910 nm Tavg > 90%
610 +/-10 nm T 50%
710 +/-10 nm T 50%
830 +/-10 nm T 50%
930 +/-10 nm T 50%

Spectrum






   3 Bandpass Filter

Wave Length (nm) Transmission (%)
540-560 nm Tavg > 85%
560-670 nm Tavg > 85%
830-870 nm Tavg > 85%
350-520 nm Tavg < 5%
580-630 nm Tavg < 5%
690-810 nm Tavg < 5%
890-1050 nm Tavg < 5%

Spectrum
