CMOS IC (ABLIC)


SII CMOS IC (ABLIC)

代碼 CMOS-IC-PMIC

人氣 45





•CMOS IC (ABLIC)



Power Management ICs
  〇 Voltage Regulators (LDO Regulators)
  〇 Voltage Detectors (Reset ICs)
  〇 Watchdog Timer
  〇 Switching Regulators (DC/DC Converters)
  〇 Power Sequencer
  〇 Charge Pump ICs
  〇 Composite ICs
  〇 Lithium-ion Rechargeable Battery Protection ICs

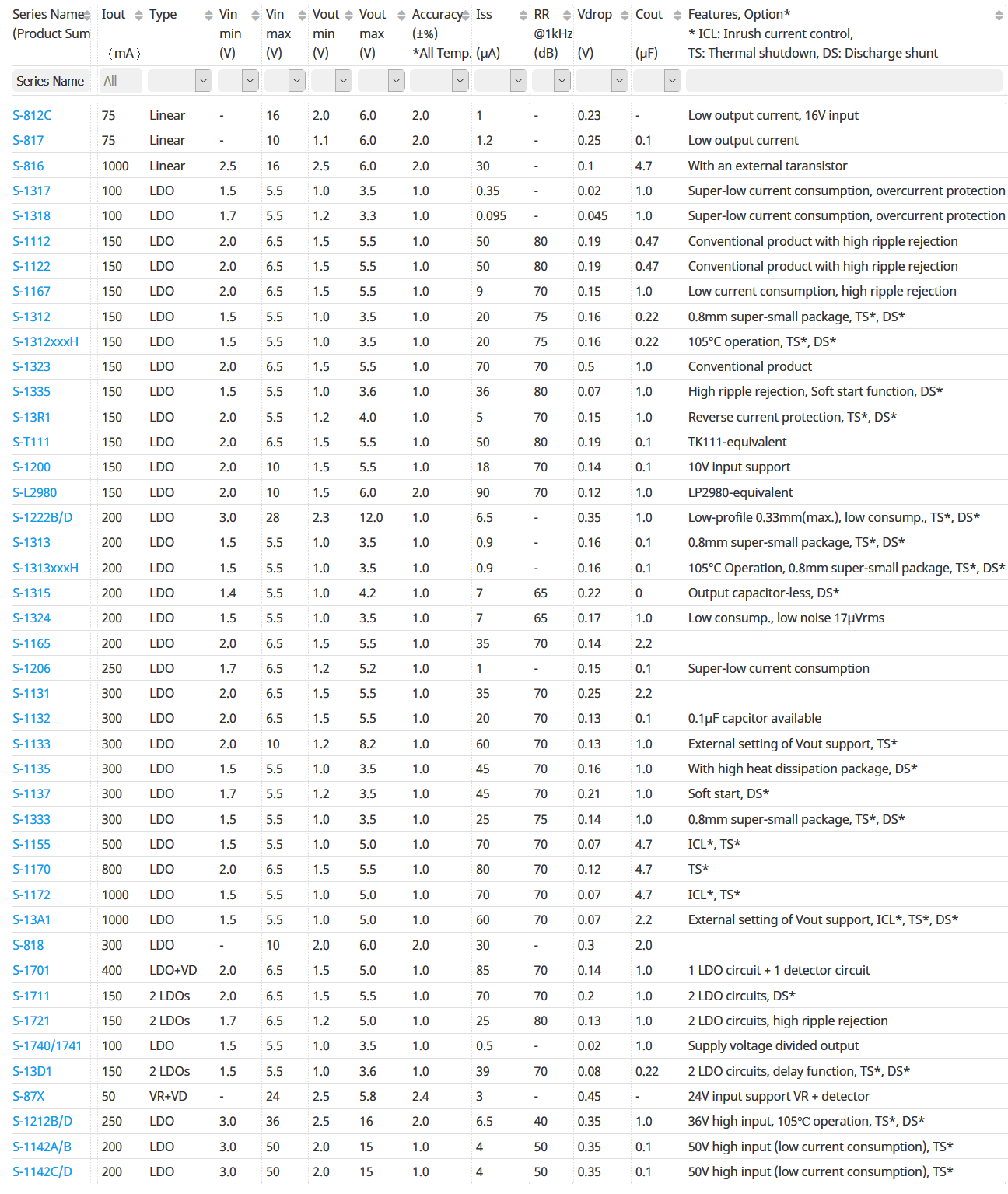

 Voltage Regulators

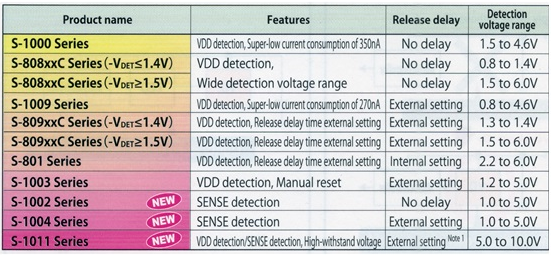

Voltage Detectors

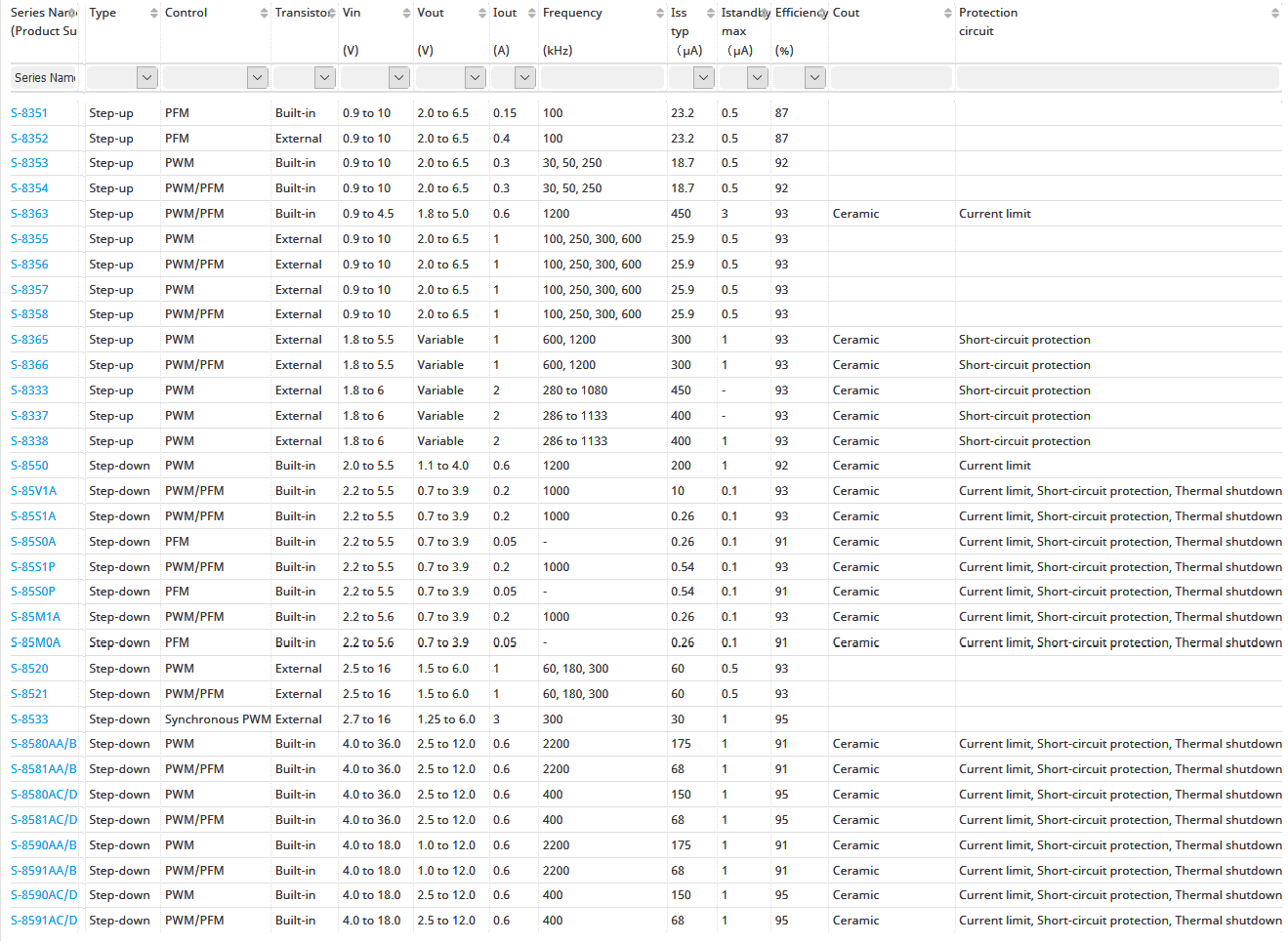

Switching Regulators




 Temperature Sensor ICs


Product Name Type Temperature
Senitivity
Temperature
Range
Power Supply
Voltage
 S-8110C/8120C series Analog output -8.20 mV/°C -40 to +100°C 2.4 to 10 V
S-5813A/5814A series Analog output -11.04 mV/°C -40 to +100°C 2.4 to 10 V
S-58LM20A series Analog output -11.77 mV/°C -55 to +130°C 2.4 to 5.5 V
S-5851A series Digital output Digital 0.0625°C -40 to +125°C 2.7 to 5.5 V

Real-Time Clock

RTC with very low current consumption

Product Name Communication
Method
Operation
Voltage
Range
Operation
Voltage at
Time Keeping
Current
Consumption
(v=3.0V
T=25°C)
Oscillation
Frequency
Deviation
Between ICs
Oscllation
Frequency
Volatge
Deviation
S-35190A 3-wire 1.3 to 5.5 V 1.1 to 5.5V 0.25 μA ±10 ppm ±3 ppm
S-35390A/1A*1 2-wire 1.3 to 5.5 V 1.1 to 5.5V 0.25 μA ±10 ppm ±3 ppm


Multifunction RTCs featuring many additional functions that cannot be expected for other RTCs


Product Name Communica-
tion
Method
Operation
Voltage
Range
Operation
Voltage at Time
Keeping
Current
Consumption
(v=3.0V
T=25°C
Oscllation
Frequency
Daviation
Between ICs
Oscllation
Frequency
Voltage
Devlation
S-35192A 3-wire 1.3 to 5.5V 1.1 to 5.5V 0.45μA ±10 ppm ±3 ppm
S-78190A series 3-wire 1.3 to 5.5V 1.1 to 5.5V 0.35μA ±10 ppm ±3 ppm
S-35392A 2-wire 1.3 to 5.5V 1.1 to 5.5V 0.45μA ±10 ppm ±3 ppm
S-35399A03 2-wire 1.3 to 5.5V 1.1 to 5.5V 0.34μA ±10 ppm ±3 ppm
S-78390A series 2-wire 1.3 to 5.5V 1.1 to 5.5V 0.35μA ±10 ppm ±3 ppm
