COLD-MIRROR - 冷光鏡  |光學鍍膜|Cold Mirror

COLD-MIRROR - 冷光鏡


冷光鏡主要反射可見光,使紅外光(Infrared) 穿透,冷光鏡屬於紅外穿透濾光片(IR Pass)的一種。濾光片常應用於監控攝影產品。

代碼 COLD-MIRROR

人氣 265

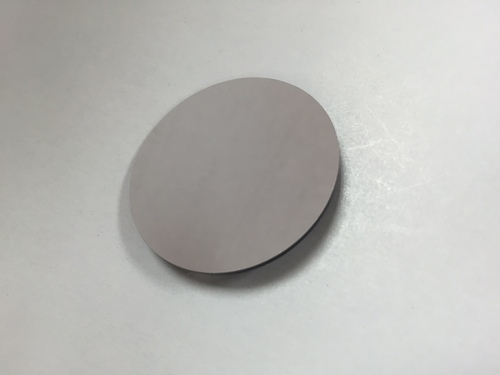

Cold Mirror ( Heat Transmission Filter )     冷光鏡

冷光鏡主要反射可見光,使紅外光(Infrared) 穿透,冷光鏡屬於紅外穿透濾光片(IR Pass)的一種。濾光片常應用於監控攝影產品。





   參考規格




   Cold Mirror

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
400-700 nm Tavg < 3%
740 +/-10 nm T50%
760-1100 nm Tavg > 90%



  Spectrum




 Available Sizes & Cutting Tolerance

  • Square:7-300nm
  • Round:3-450nm
  • Cutting Tolerance = ±0.05~±0.1mm
 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times
 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C
 Available Glass Material
(Thickness & Maximum Operation Temperature)

  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design


Design and Fabrication upon customer's specifications.
Please fill out the Standard Inquiry Form we will contact you ASAP.
