Day & Night filter 90%


Day & Night filter 90% Blocks the transmission of infrared light while it allows the transmission of visible light.

代碼 DAY-NIGHT-FILTER-90

人氣 44





 Day & Night Filters 90%

    參考規格


  Day & Night 90%

Wave Length (nm) Transmission (%)
420-620 nm Tavg > 85%
645 +/-10 nm  T50%
850 nm T > 85%

900-1100 nm

Tavg < 5%

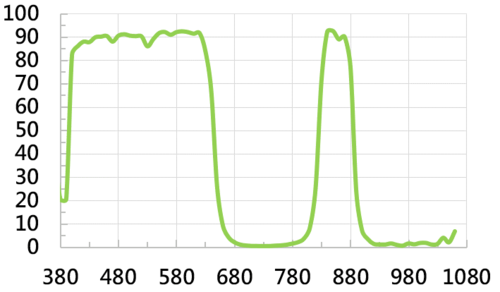

    Spectrum


 Application

Camera


 Available Sizes & Cutting Tolerance

  • Square:7-300nm
  • Round:3-450nm
  • Cutting Tolerance = ±0.05~±0.1mm

 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times

 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C

 Available Glass Material
(Thickness & Maximum Operation Temperature)

  • Soda Lime Glass(Asahi)≒150°C :
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.2mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm,1.6mm…etc。

  • Borofloat R33 Glass(Schott D263)≒450°C :
    0.1mm,0.2mm,1.1mm,2.0mm,2.75mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
