DBR-B71305+AR


DBR-B71305+AR,利用布拉格反射鏡(Distributed Bragg reflection mirror, DBR)增加LED藍光的發光效益。

代碼 DBR-B71305-AR

人氣 22







DBR-B71305+AR

利用布拉格反射鏡(Distributed Bragg reflection mirror, DBR)增加LED藍光的發光效益。




   參考規格


    DBR-B71305+AR

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
430-450 nm Tavg >90%
510-750 nm Tavg <2%
480±5nm T50%

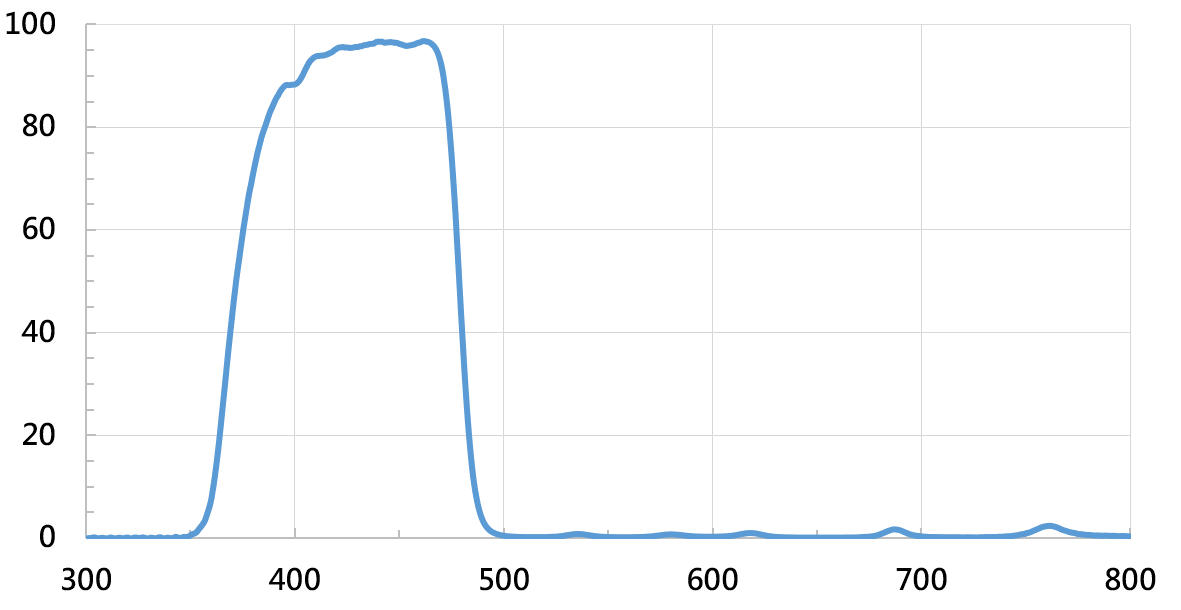

  Spectrum


 Application

  • Wafer LED(2", 4"......)

 Available Sizes & Cutting Tolerance

  • Square:7-300mm
  • Round:3-450mm

 Durability

  • Temperature Aging+65℃,95%RH, 500Hours
  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times


 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C

 Available Glass Material
(Thickness & Maximum Operation Temperature)


  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications
    Please fill out the Standard Inquiry Form we will contact you ASAP .
