DL-Mirror(Dielectric Mirror)


DL-Mirror R≧99% (Dielectric Mirror) DL-Mirror achieves higher reflection in visible light field and also keeps the excellent stability.

代碼 DL-MIRROR

人氣 141





Dielectric Mirror

DL-Mirror achieves higher reflection in visible light field and also keeps the excellent stability.







    參考規格


   Dielectric Mirror



Standard Spectral Reflectance: A.O.I=45°
Wave Length (nm) Reflectance (%)
410-720 nm Ravg > 99.5%
410-720 nm Rabs > 99%

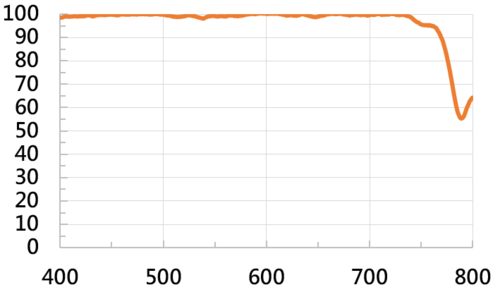

Spectrum

 Application

  • Projector: LCD/LDP/LCOSLightingOptical InstrumentsScientific Optical Applications,
  • Other optical products

 Available Sizes & Cutting Tolerance

  • Square:7-300mm
  • Round:3-450mm
  • Cutting Tolerance = ±0.05~±0.1mm

 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times


 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C


 Available Glass Material
(Thickness & Maximum Operation Temperature)

  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications

    Please fill out the Standard Inquiry Form we will contact you ASAP .
