HOT MIRROR 熱鏡

775 Hot Mirror it is good for visible light transmission but it reflects the IR and blocks the UV from the light source

代碼 HOT-MIRROR-775

人氣 1078



Hot Mirror 775( Heat Reflection Filter )



Hot Mirror is good for visible light transmission but it reflects the IR and blocks the UV
from the light source.




   參考規格

    Hot Mirror

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
250-320 nm Tavg < 0.5%
775 +/-12 nm T50%
400-750 nm Tavg > 90%
800-1050 nm Tavg < 5%

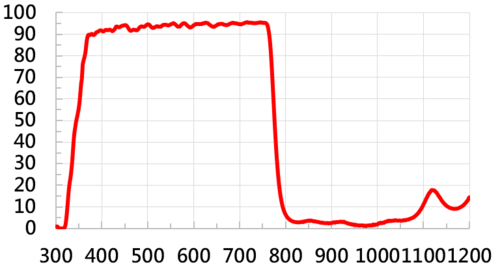

  Spectrum


 Application

Architectural Lighting, Medical Illumination, Art Gallery, Fiber Optic Lighting,
Other potical.
 Available Sizes & Cutting Tolerance

  • Square:7-300mm
  • Round:3-450mm
  • Cutting Tolerance = ±0.05~±0.1mm
 Durability

  •   Temperature Aging+65℃,95%RH, 500Hours
  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle
  • Chemical/Res,20°C Ether/alcohol,24Hours
  • Mechanical Res,3M Tape # 600 50 Times
 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C
 Available Glass Material
(Thickness & Maximum Operation Temperature)


  • Soda Lime Glass(Asahi)≒150°C：
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C：
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C：
    1.1mm,2.0mm,3.3mm,3.8mm…etc    。
 Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
