IR-CUT FILTER  |光學鍍膜|IR Cut Filter

IR-CUT FILTER


紅外截止濾光片,是將紅外光反射濾除,而可見光穿透。 濾光片紅外截止濾光常用於CCD攝像機,以產生真實的彩色圖像並避免顏色偏差。 顯示原色時,紅外截止濾光片可保持自然逼真的效果。

代碼 IRCUT

人氣 118





IR Cut Filter      紅外截止濾光片

紅外截止濾光片,是將紅外光反射濾除,而可見光穿透。
濾光片紅外截止濾光常用於CCD攝像機,以產生真實的彩色圖像並避免顏色偏差。
顯示原色時,紅外截止濾光片可保持自然逼真的效果。



   參考規格


    IR Cut Filter 640nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
400-420 nm Tavg > 80%
400-620 nm Tavg > 90%
640 +/-10 nm T50%
720-1050 nm Tavg < 1%

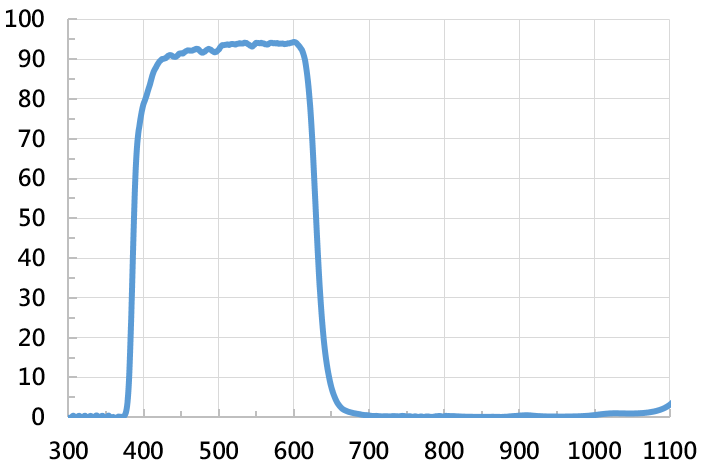

Spectrum


    IR Cut Filter 650nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
400-420 nm Tavg > 80%
400-620 nm Tavg > 90%
650 +/-10 nm T50%
700-1000 nm Tavg < 2%
1000-1100 nm Tavg < 3%



Spectrum


IR Cut Filter 670nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
400-620 nm Tavg> 85%
670 +/-10 nm T50%
700-1000 nm Tavg < 2%
1000-1100 nm Tavg < 3%


Spectrum


    IR Cut Filter 690nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
690 +/-10 nm T50%



Spectrum





 Application

Digital Still Camera ,Camcoder Camera, PC Camera, CCTV Camea,
Mobile – phone camera

 Available Sizes & Cutting Tolerance

  • Square:7-300nm
  • Round:3-450nm
  • Cutting Tolerance = ±0.05~±0.1mm

 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times

 Standard Specification


  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C

 Available Glass Material
(Thickness & Maximum Operation Temperature)


  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
