IR-CUT FILTER-690


IR-CUT 690 FILTER 紅外截止濾波片 IR-Cut Filter is used for the CCD camera to produce true color images and to avoid the color deviation. IR-Cut Filter keeps the natural and vivid reality when the primary colors are displayed.

代碼 IRCUT-690

人氣 89





IR Cut Filter 690  紅外截止濾波片

IR-Cut Filter is used for the CCD camera to produce true color images and to avoid the color deviation.



IR-Cut Filter keeps the natural and vivid reality when the primary colors are displayed.




 參考規格


    IR Cut Filter 690nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
690 +/-10 nm T50%

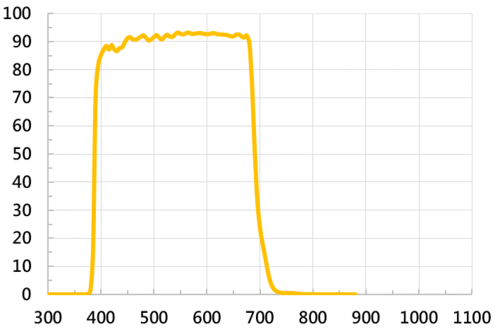

Spectrum





 Application

Digital Still Camera ,Camcoder Camera, PC Camera, CCTV Camea,
Mobile – phone camera

 Available Sizes & Cutting Tolerance

  • Square:7-300nm
  • Round:3-450nm
  • Cutting Tolerance = ±0.05~±0.1mm

 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times

 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C

 Available Glass Material
(Thickness & Maximum Operation Temperature)


  • Soda Lime Glass(Asahi)≒150°C :
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C :
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
