Notch Filter



    參考規格


    M79502

Wave Length (nm) Transmission (%)
432 nm, 616 nm T50%

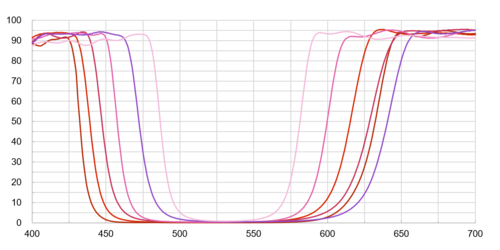

  Spectrum




     M5601

Wave Length (nm) Transmission (%)
448 nm, 628 nm T50%





   Spectrum


      M4905

Wave Length (nm) Transmission (%)
440 nm, 632 nm T50%











Spectrum


     M79508

Wave Length (nm) Transmission (%)
458 nm, 600 nm T50%





Spectrum




    P79712

Wave Length (nm) Transmission (%)
472 nm, 640 nm T50%




Spectrum


    M32815

Wave Length (nm) Transmission (%)
486 nm, 582 nm T50%




Spectrum


Available Sizes & Cutting Tolerance

  • Square:7-300nm
  • Round:3-450nm
  • Cutting Tolerance = ±0.05~±0.1mm

Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times

Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C

Available Glass Material
(Thickness & Maximum Operation Temperature)

  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
