UV Cut Filter  |光學鍍膜|UV Cut Filter

UV Cut Filter


紫外線截止片 主要反射紫外光,防止紫外光穿透。常應用於博物館、美術館照明 等,要求無紫外光之產品。

代碼 UV-CUT-FILTER

人氣 45





UV Cut Filter   紫外線截止片

主要反射紫外光,防止紫外光穿透。常應用於博物館、美術館照明 等,要求無紫外光之產品。










    參考規格


UV Cut 370 nm



Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
370 +/- 10 nm T 50%



Spectrum

   UV Cut 410 nm



Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
300-395 nm Tavg < 1%
410 +/- 5 nm T 50%
 425-680 nm Tavg > 97%





Spectrum

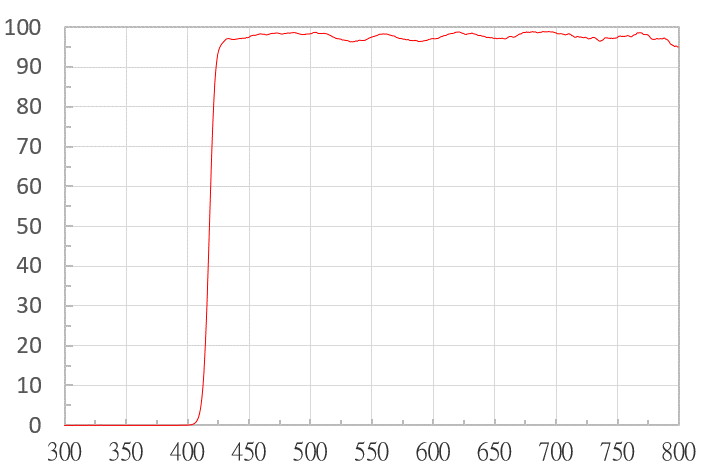

UV Cut 420 nm

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
300-405 nm Tavg < 1%
420 +/- 5 nm T 50%
445-680 nm Tavg > 92%
Spectrum

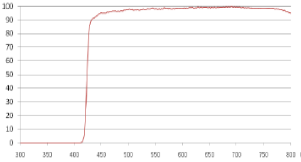

  UV Cut 425 nm



Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
300-395 nm Tavg < 1%
 425 +/- 5 nm T 50%
 445-680 nm  Tavg > 97%



Spectrum

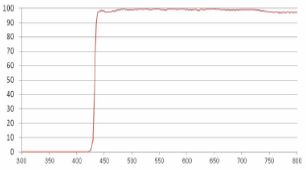

    UV Cut 437 nm



Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
320-420 nm Tavg < 0.5%
  437 +/- 5 nm  T 50%
 457-680 nm  Tavg > 97.5%

Spectrum


 Application

Projector: LCD/DLP/LCOS, Lighting, Optical Instruments, Scientific Optical Applications.

 Available Sizes & Cutting Tolerance

  • Square:7-300mm

  • Round:3-450mm

  • Cutting Tolerance = ±0.05~±0.1mm


 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times


 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C


 Available Glass Material
(Thickness & Maximum Operation Temperature)

  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications
    Please fill out the Standard Inquiry Form we will contact you ASAP .
