UV-PASS  |光學鍍膜|UV pass filter

UV-PASS


UV Pass,可濾除波長400nm以後的光線,將可見光反射,只保持紫外光穿透。此產品應用廣泛,多使用於感應設備、驗鈔機、精密儀器上。

代碼 UV-PASS

人氣 165

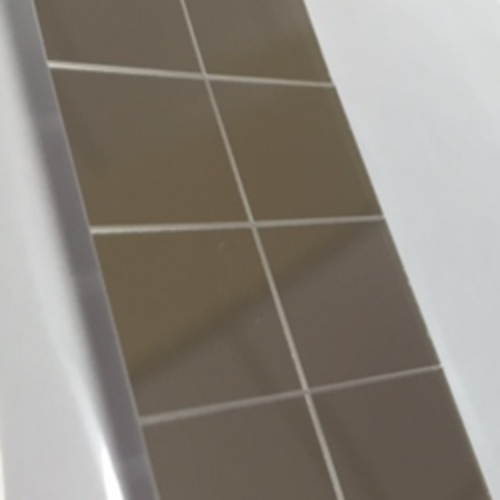

UV Pass Filter  紫外線穿透片


UV Pass,可濾除波長400nm以後的光線,將可見光反射,只保持紫外光穿透。此產品應用廣泛,
多使用於感應設備、驗鈔機、精密儀器上。















   參考規格

    UV Pass Filter-4

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
315-390 nm Tavg > 80%
400 +/- 5 nm T50%
410-700 nm Tavg < 0.5%



Spectrum




UV Pass Filter-5

Standard Spectral Transmittance: A.O.I=0°
Wave Length (nm) Transmission (%)
350-430 nm Tavg > 90%
500-700 nm Tavg < 0.5%

Spectrum


 Application

Currency Detector,  Medical Instrumentation, Other potical.


 Available Sizes & Cutting Tolerance

  • Square:7-300nm
  • Round:3-450nm
  • Cutting Tolerance = ±0.05~±0.1mm

 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times

 Standard Specification


  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C

 Available Glass Material
(Thickness & Maximum Operation Temperature)

  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
