Application
|
|
Currency Detector, Medical Instrumentation, Other potical.
|
|
Available Sizes & Cutting Tolerance
|
- Square:7-300nm
- Round:3-450nm
- Cutting Tolerance = ±0.05~±0.1mm
|
Durability
|
-
Temperature Aging+65℃,95%RH, 500Hours
-
Hight/Low Temp +85°C/-40°C,30min/30min 100cycle
-
Chemical/Res,20°C Ether/alcohol,24Hours
- Mechanical Res,3M Tape # 600 50 Times
|
|
Standard Specification
|
- Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C
|
Available Glass Material
(Thickness & Maximum Operation Temperature)
|
-
Soda Lime Glass(Asahi)≒150°C：
0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。
-
Tempered Glass(schott D263/B270)≒250°C：
0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。
- Borofloat R33 Glass≒450°C：
1.1mm,2.0mm,3.3mm,3.8mm…etc。
|
|
Customer Design
|
- Design and Fabrication upon customer's specifications.
- Please fill out the Standard Inquiry Form we will contact you ASAP.
|
|

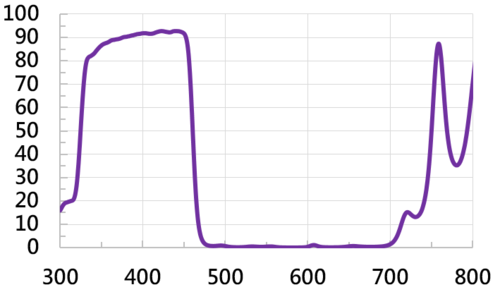

UV Pass Filter-5
