Wafer Coating


Wafer coating allows IC component has multiple light-sensing functions. Coated-wafer has the ability of multiple photosensitive areas. Applications are 3D automobile sensing, smart home, phones and wearable devices.

代碼 WAFERCOATING

人氣 282





Wafer Coating         晶圓鍍膜
Applications are 3D automobile sensor, smart home, phones and wearable devices.
The best wafer coating reliability, well-distributed, and customer service.





       Products  List



Wafer size  2 , 4 , 5 , 6 , 8 , 12 , 16 , 18 inch

    參考規格

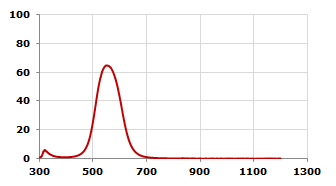

     IR 550 nm

Wave Length (nm) Transmission (%)
540-560 nm AT PEAK
AT PEAK  T 60% ~ T 70%
720-780 nm Tabs < 1%
780-1150 nm Tabs < 0.5%



Spectrum

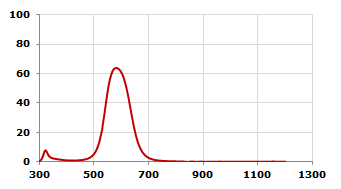

    IR 580 nm

Wave Length (nm) Transmission (%)
300-360 nm Tavg < 3%
360-450 nm Tavg < 2%
AT PEAK  T 55% ~ T 68%
565-595 nm AT PEAK
800-1200 nm Tavg < 0.5%

    Spectrum

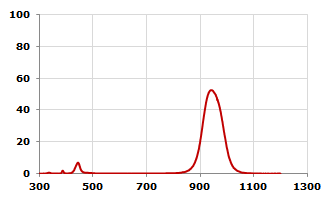

     IR 940 nm

Wave Length (nm) Transmission (%)
300-460 nm Tavg < 3%
460-810 nm  Tavg < 1%
AT PEAK T 50% ~ T 65%
925-955 nm AT PEAK
1100-1200 nm Tavg < 1%

Spectrum

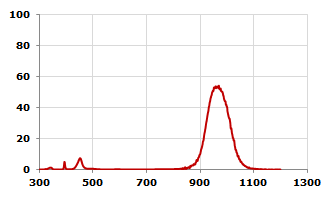

     IR 970 nm

Wave Length (nm) Transmission (%)
AT PEAK T 50% ~ T 65%
950-990 nm AT PEAK






Spectrum

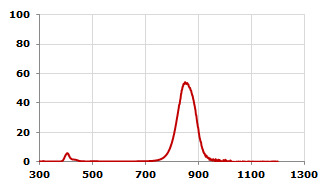

    IR 850 nm

Wave Length (nm) Transmission (%)
300-450 nm Tavg < 3%
450-740 nm  Tabs < 1%
810-830 nm  T 30%
840-860 nm AT PEAK
AT PEAK T 50% ~ T 65%
885-905 nm  T 30%
1000-1200 nm  Tabs < 1%

Spectrum

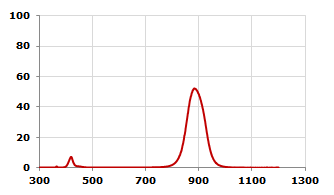

   IR 880 nm

Wave Length (nm) Transmission (%)
300-460 nm Tavg < 3%
460-750 nm  Tabs < 1%
AT PEAK T 50% ~ T 65%
860-900 nm AT PEAK
1050-1200 nm  Tabs < 1%

Spectrum

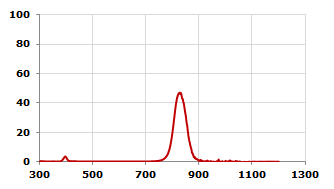

   IR 830 nm

Wave Length (nm) Transmission (%)
300-450 nm Tavg < 3%
450-700 nm  Tabs < 1%
820-840 nm AT PEAK
AT PEAK  Tabs > 30%
1000-1200 nm Tabs < 1%
Spectrum

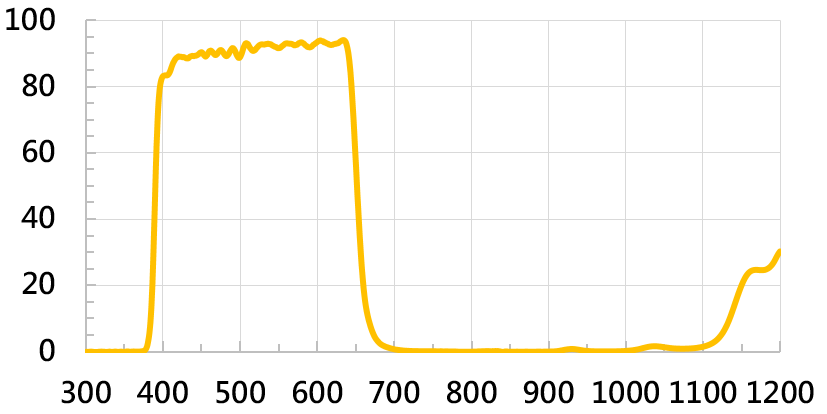

IR CUT 650 nm

Wave Length(nm) Transmission(%)
420-600nm Tavg>90%
700-1100nm Tavg<3%
640-660nm T50%



Spectrum

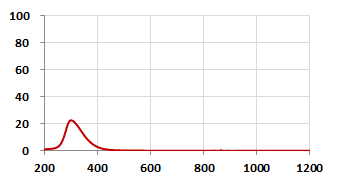

  UV 300 nm

Wave Length (nm) Transmission (%)
AT PEAK T > 20%
280-320 nm   AT PEAK
400 nm Tabs < 5%
400-1050 nm Tavg < 0.5%


Spectrum

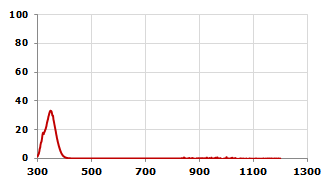

     UV 350 nm

Wave Length (nm) Transmission (%)
AT PEAK T > 25%
320-380 nm AT PEAK
400 nm Tabs < 5%
400-1050 nm Tavg < 0.5%


Spectrum

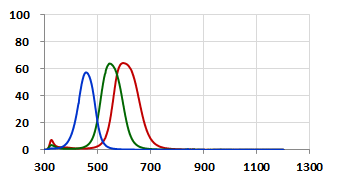

    R.G.B

  型號    Wave Length(nm) Transmission (%)
 R  585-615 nm 65%>PEAK>55%
 G  540-560 nm 65%>PEAK>55%
 B  430-460 nm 65%>PEAK>55%
Spectrum

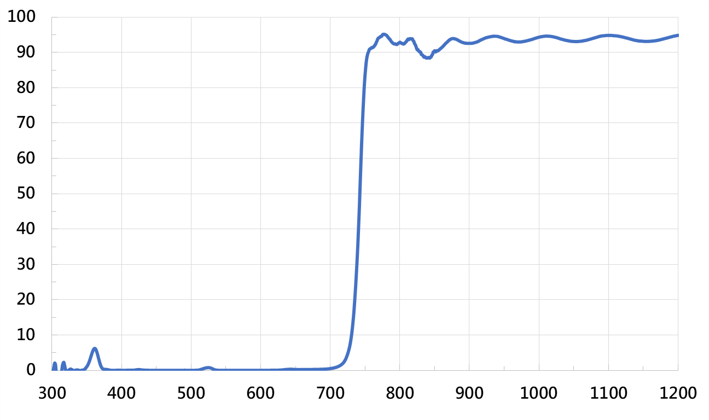

Cold Mirror Wafer Coating

Wave Length(nm) Transmission(%)
400-700nm Tavg<3%
740 +/-10nm T50%
760-1100nm Tavg>90%



Spectrum


 Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
