Welding Notch


It helps to cut off the infrared light and UV energy to protect the user’s eyes and facilitates the operation when people are welding.

代碼 WELDING-NOTCH

人氣 42





Welding Notch



It helps to cut off the infrared light and UV energy to protect the user’s eyes and facilitates
the operation when people are welding















    參考規格


      Welding Notch

Wave Length (nm) Transmission (%)
Peak at 553 nm T = 66.71%
500 nm T < 20%

    Spectrum



 Application

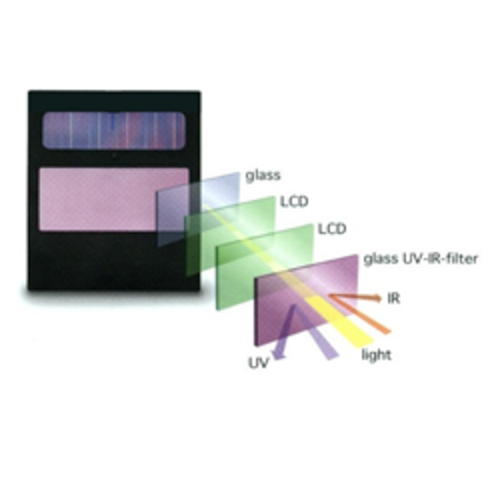

Auto Darkening Welding Lens(Filter)


 Available Sizes & Cutting Tolerance

  • Square:7-300nm
  • Round:3-450nm
  • Cutting Tolerance = ±0.05~±0.1mm

 Durability

  • Temperature Aging+65℃,95%RH, 500Hours

  • Hight/Low Temp +85°C/-40°C,30min/30min 100cycle

  • Chemical/Res,20°C Ether/alcohol,24Hours

  • Mechanical Res,3M Tape # 600 50 Times

 Standard Specification

  • Humidity, Adhesion, and Abrasion Resistance is can based on MIL-M-13508C

 Available Glass Material
(Thickness & Maximum Operation Temperature)

  • Soda Lime Glass(Asahi)≒150°C:
    0.1mm,0.2mm,0.7mm,1.3mm,2.1mm,3.0mm…etc。

  • Tempered Glass(schott D263/B270)≒250°C:
    0.1mm,0.21mm,0.3mm,0.4mm,0.55mm,0.7mm,1.1mm…etc。

  • Borofloat R33 Glass≒450°C:
    1.1mm,2.0mm,3.3mm,3.8mm…etc。

 Customer Design

  • Design and Fabrication upon customer's specifications.
  • Please fill out the Standard Inquiry Form we will contact you ASAP.
